Product Specification

Brand Name: CHJ

Use: Universal

Wireless Communication: RF

Model Number: C09

Channel: 1

Package: Yes

Frequency: 433 MHz

Description:

Universal Wireless Remote Control Switch DC 12V 1CH RF Relay Receiver 433 MHz Receiver Module for Light Switch

      PACKING INCLUDE:

      1 piece remote control receiver only



_05

408

The way of Circuit Connection:

Please Note:
the Receiver Switch Module part have 3 ways of working mode.The OUTPUT signal have 2 Voltage Level. It decided by the INPUT of the COM pin.

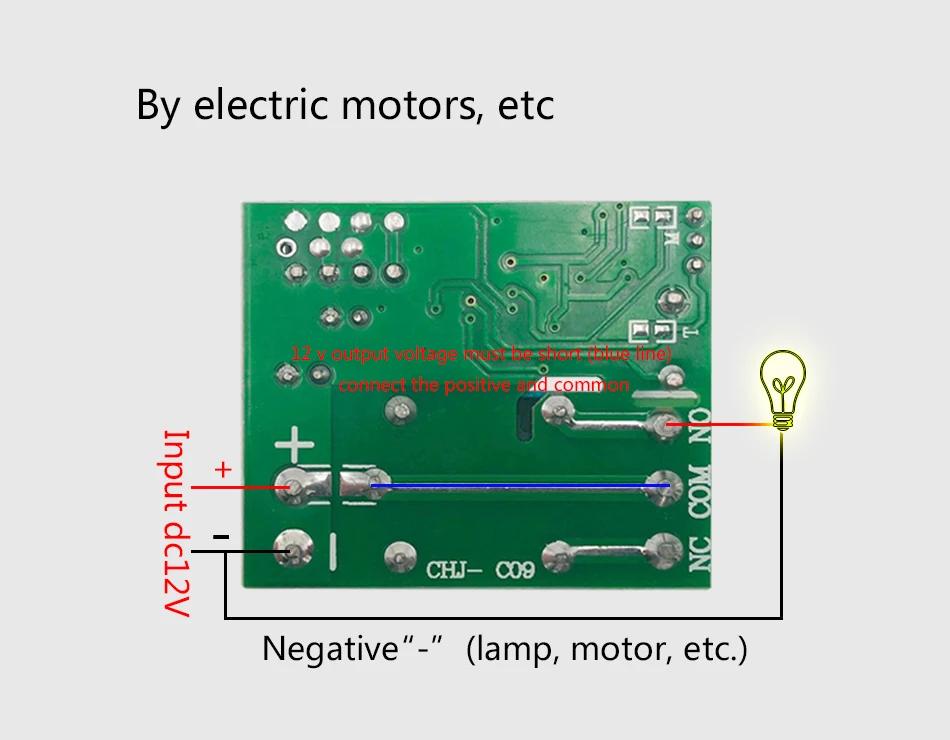

OUTPUT MODE 1:

Connect the COM to the Power Supply by DC12V, the Output pin will create DC12V Signal. Please check below diagram for better understanding.

_02

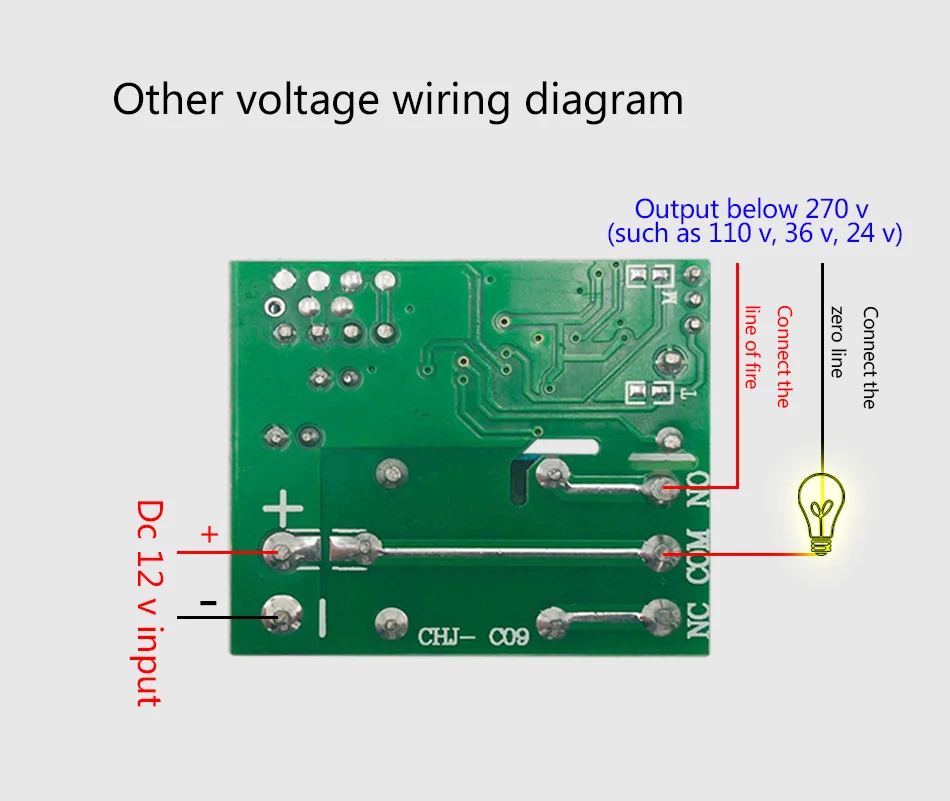

OUTPUT MODE 2:

Connect the COM pin with any other Additional Power Supply,the output will create the same Voltage signal as the Additional Power Supply.
it can be Direct Current or Alternating Current.  Decided by the Additional Power Supply.
BUT, Please note: the additional Power Supply should be in the range of the Receiver Switch Module-(DC5-12V, AC 85-240V).
Please check below diagram for better understanding.

_03

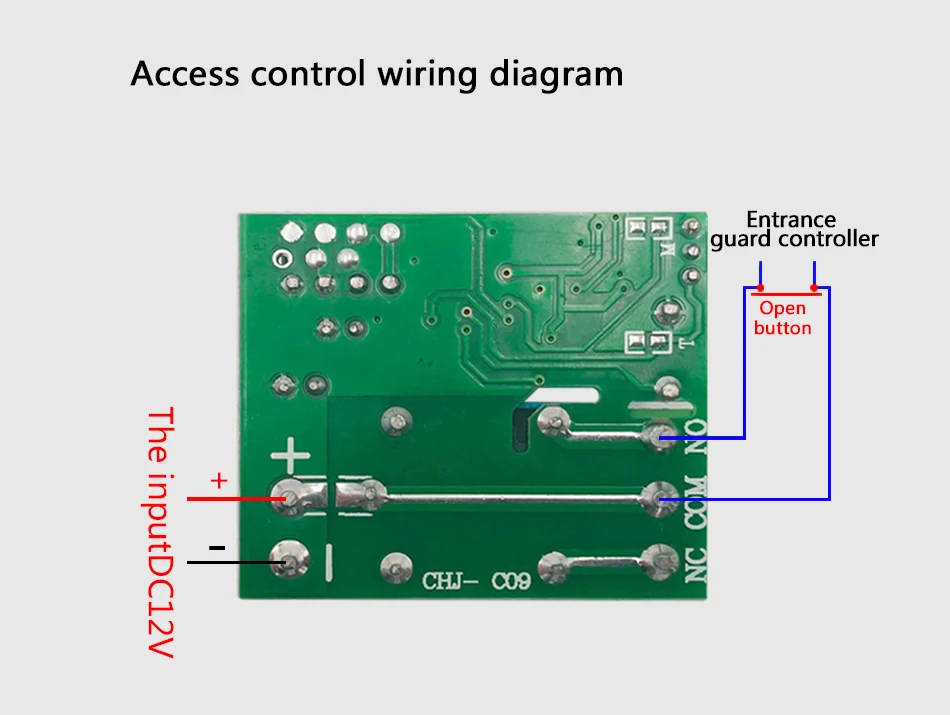

OUTPUT MODE 3:
Connect the COM pin with any other device, the it can be used as switches to oper door, control motor or control fun ect.

_04

IMPORTANT INFORMATIONS:

You can match the Remote Control with the Receiver SwitchModule in 4 mode:

Remote mode 1:  Momentary/Jog
Press and hold one key->ON; Release the key->OFF
Details:
Hold one key , the corresponding channel is working /ON;Then Release  your finger the channel turns to stop/OFF .

Remote Mode 2: Toggle/Self-Lock
Press one Key->ON; Press the same key again->OFF
Details:
Press one key once , the corresponding channel turn  working/ON;
Press the same key once again the same channel turn to stop/OFF .

Remote Mode 3: Latched/Inter-Lock
Press one Key once->ON; Press another key once->OFF
Details:
Press one key once( Remote control with (A 、B buttons ,take A key for example), the corresponding channel (like channel 1) turn to working/ON;
Press another key once(take B key for example), the same channel turn to stop/OFF. At the same time, another corresponding channel(like channel 2) turn to working / ON .

1.Learning method
connect the power , and the LED indicator flash 3 seconds ,press the learning button again after the LED indicator off ,the LED indicate flash now.press the remote control button and the
LED indicator off ,learning successfull

2.How to delet clear the code ?
1).connect to the power and the LED indicator flash 3 seconds
2)after the LED indicator off ,press and hold the learning button untill the LED INDICATE flash 8 seconds ,deleted successfully

3.Total open learning method:
1).Connect the power and the LED indicator flash 2).press the learning botton 2 times , the LED indicator  "OFF" 2 times , and then flash again ,after the LED indicator off
please press the learning button 1 time ,the LED indicator flash now ,press the remote control button ,LED indicator off , learning mode successfull

4.Total close learning method:
1.connect the power , LED indicator flash ,press the learning button at once , LED indicator off , and then flash again2.after the LED indicator off ,press the learning button 1 time , LED indicator flash now 3.press the remote control button , the LED indicator offnow , learning mode successfull

Electronics Character:
Input Power: DC10V-14V
Standby Current: <5MA
RF Frequency: 315M or 433M
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 20 meters above
Decoding mode: MCU software decoding
Remote storage: 25 pcs
Support remote type: Learning code, Fixed code(Rolling code can be design)
Working mode: Momentary, Toggle, Latching
Wiring type: fixed terminal
Output Terminal: NO , NC , COM
Dimension of PCB: 35*30*18mm  (L,W,H)

Pin functions:
Wiring diagram 1:
+V: 12V + input ;
- V: 12V - input ;
NO: Output , normal open;
COM:Output , common ;
NC:  Output , normal close;
